ENF Sheet
-
-
Large-area nanofiber membrane sheet format
-
Suitable for scalable 3D culture and tissue engineering
-
Customizable sizes and shapes
-
Biomimetic ECM-like architecture
-
Supports advanced in-vitro and translational research
-
Ideal for bioreactors and custom culture systems
-
Need a quote?
Click the button below and fill out the form to request a quote.
Description
-

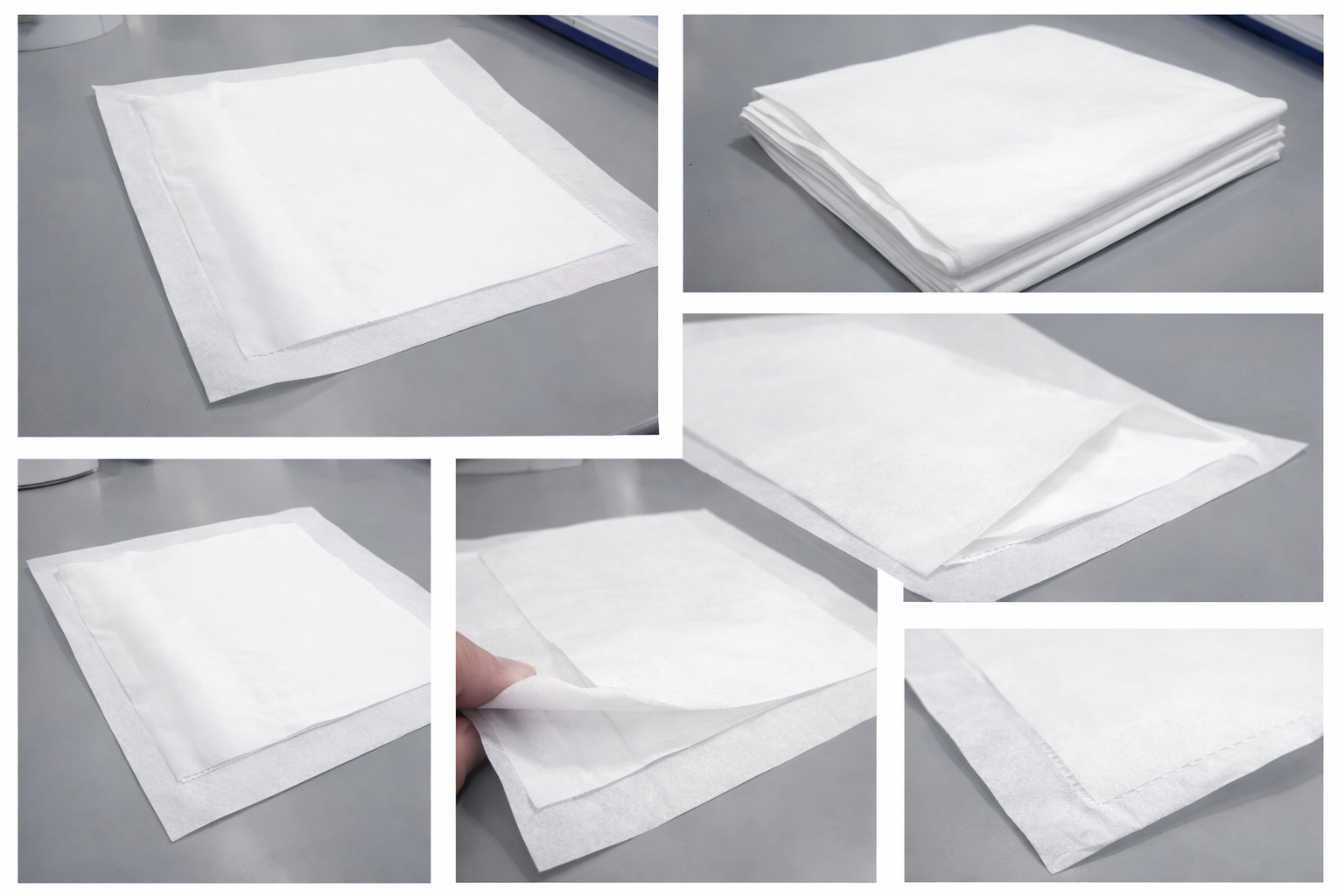

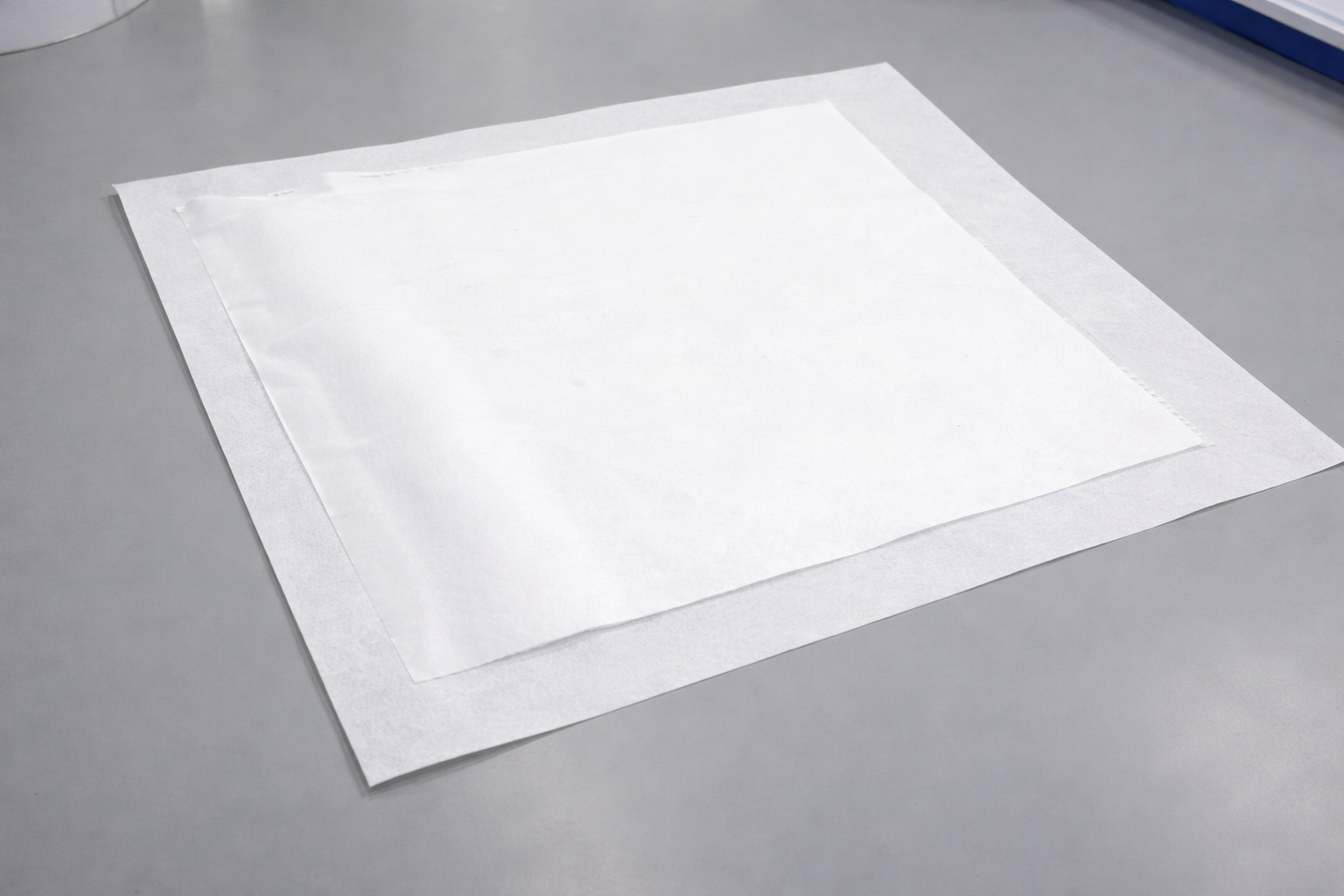

ENF Sheet is a high-performance electrospun nanofiber membrane designed to replicate the native extracellular matrix (ECM) for advanced 3D cell culture, tissue engineering, and translational research. Unlike well-plate formats, ENF Sheet offers a continuous, large-area scaffold suitable for custom experimental setups, bioreactors, and engineered tissue constructs.
This format is ideal for applications requiring scale, flexibility, and integration into non-standard culture systems.
Key Applications
-
Tissue Engineering & Regenerative Medicine
ECM-like scaffolds for building functional tissue constructs and studying tissue formation. -
Advanced 3D Cell Culture Models
Enables complex in-vitro systems beyond traditional well plates. -
Disease Modeling & Translational Research
Suitable for cancer, neurological, and inflammatory disease studies at scale. -
Bioreactor & Custom Culture Systems
Designed for integration into dynamic and perfusion-based culture environments.
Why Choose ENF Sheet?
-
Large-area nanofiber membrane for scalable applications
-
Mimics native ECM structure
-
Supports enhanced cell attachment, proliferation, and differentiation
-
Fully customizable in size and shape
-
Xeno-free and batch-consistent
-
Suitable for short-term and long-term cultures
Available Sizes
-
Standard: 12 in × 8 in
-
Custom sizes available upon request
Availability
Availability: Request for Quote
-
-
Material & Structure
-
Polymer options: PCL, PLA, PVA, or custom polymers
-
Fiber diameter: ~700 nm
-
Thickness: ~20 µm
-
Porosity: >90%
-
Fiber orientation: Random or aligned
Sterilization & Quality
-
Sterilization method: UV irradiation
-
Quality control: Tested for physical properties, cell attachment, and viability
Compatibility
-
Format: Sheet (standard and custom sizes)
-
Imaging compatibility: Visible and fluorescence microscopy
-
Culture duration: Suitable for short- and long-term culture
-
Compliance: Compatible with standard lab and high-throughput equipment
🧪 Recommended Applications
-
Tissue engineering scaffolds
-
3D cell culture at scale
-
Bioreactor-based culture systems
-
Translational research models
-
Implantable tissue research
-
Additional information
| System Type | Enclosed benchtop electrospinning system |
|---|---|
| Syringe Configuration | Single syringe |
| Max Voltage | 20 kV DC |
| Flow Rate Range | 1.436 µL/hr – 7515 mL/hr |
| Collector Speed | Up to 3000 rpm |
| Enclosure Size: | 580 × 290 × 250 mm |
